Russian Standard Threaded Globe Valve Forged Steel for Industrial Use

Product Overview

A Russian standard globe valve with threaded ends is the regulating component in a GOST-specified line. It screws straight onto a Russian standard pipe thread, and turning the handwheel lifts the disc off its seat so flow can be trimmed between fully open and fully closed. This model is built in forged steel, so the body holds its shape under pressure and mechanical stress instead of relying on a thick cast wall.

Importers and project buyers in Russia and Central Asia use it in two ways. On new construction it fills the regulating position between isolation valves, where one valve throttles the flow and another shuts the section down. On maintenance and retrofit work it replaces a worn GOST globe valve already screwed into the header, with no welding and no pipe re-cutting: the old valve comes out, the new one screws in.

Most lines need more than throttling. Where a section has to be isolated quickly, a ball valve does that job with a quarter turn, and a globe valve handles the regulation, so the two are usually specified together on the same header and are often sourced from the same ball valve supplier. Petrochemical transfer, municipal water supply and wastewater duties are where this model spends most of its working life.

- Forged steel body: a forged body carries pressure and mechanical shock without the internal variation a casting can hide, which is why this valve is chosen for demanding sections rather than light water duty alone. - GOST thread cut, not cast: the ends are machined to the Russian standard thread so the valve screws straight onto GOST pipe. No adapter, no transition piece, no mismatch to explain at the joint. - Screwed installation: threaded ends mean the valve goes in and comes out with hand tools. On a plant where the line has to be back in service the same shift, that saves the cutting and re-welding a welded body would need. - Real throttling, not just on or off: the disc closes progressively against its seat, so a flow rate can be set somewhere in between and held. Gate and ball designs are poor at this; the globe pattern is built for it. - Sealing that stays put: a solid sealing mechanism and a robust stem keep the joint tight through repeated operation, which is what limits drip losses on a header with dozens of valves. - One design across pressure classes: a distributor can cover several duty points without carrying three separate families.

Construction & Materials

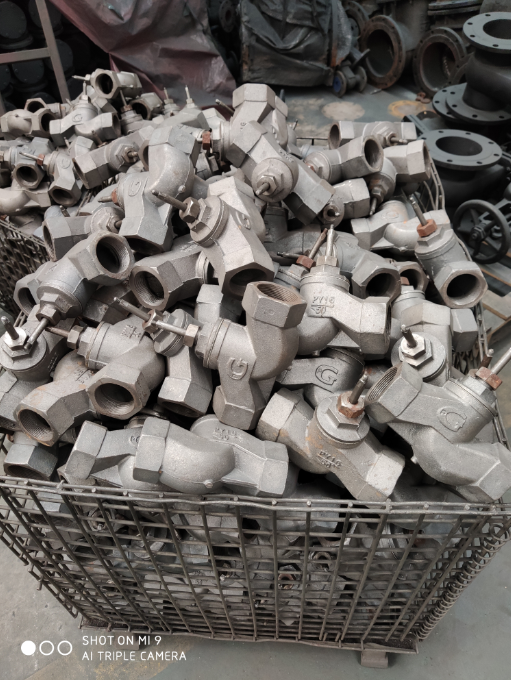

Body. The body is forged steel. Forging works the metal into a dense, uniform structure, which is what keeps a pressure-retaining wall consistent from one valve to the next. Cast steel is also used across the same series where a size or pattern suits it better, and both are selected for strength, sealing stability under pressure and long service in industrial lines.

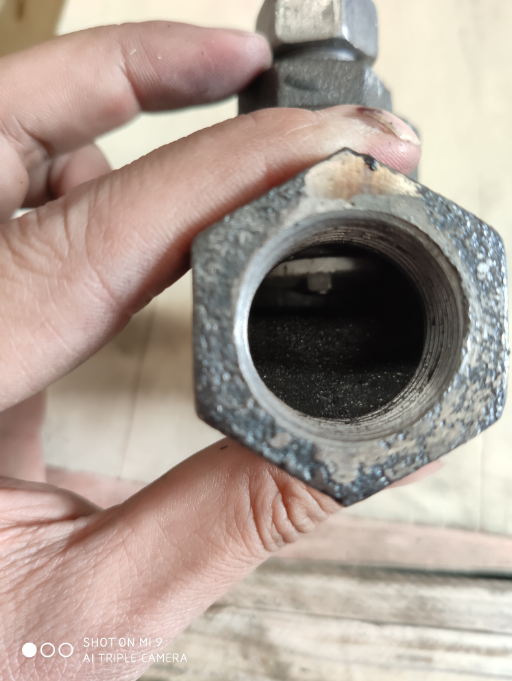

Threads. Both ends carry a machined Russian standard thread. The thread is the part of a forged steel globe valve that decides whether the joint seals at all, so it is cut and checked before assembly rather than formed in the casting. A rough or undersized thread will weep no matter how good the body is.

Disc, seat and stem. The disc closes onto a machined seat face inside the body, giving the gradual shut-off that makes throttling possible. The stem is a machined bar that transfers handwheel movement directly to the disc without flexing or binding in service.

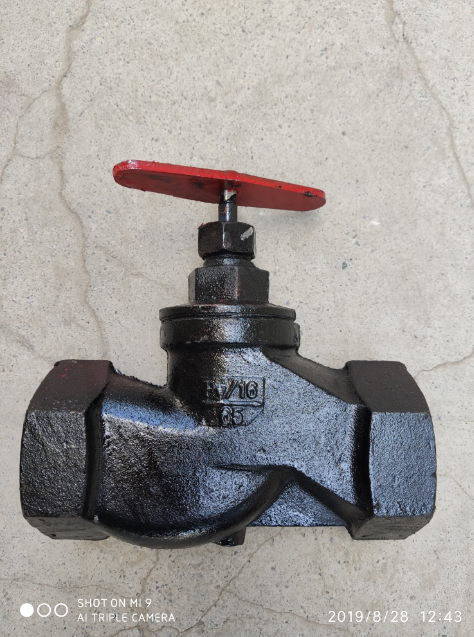

Bonnet and handwheel. The bonnet is held by a hexagonal nut, so a fitter can break the joint with a standard wrench during servicing. The handwheel is painted red against the black body, which makes this valve easy to pick out on a crowded header where several valve types sit side by side.

Finish. A black coating protects the body through storage and transit. Treat it as transport protection, not as a service coating; the machined threads and the seat faces are left bare because they have to seal.

Testing & Quality Records

• Pressure test before dispatch. Each valve is tested under pressure before it is packed, so a leaking seat or shell is caught in the factory rather than on site.
• Thread inspection. Threads are checked against gauges, because a thread that measures right but cuts rough will still leak once tape is applied.
• Material traceability. Body material can be traced to its heat number; ask for the traceability record when your project file needs it.
• Documentation on request. Material certificates and pressure test records are prepared for buyers whose QA/QC team signs the item off before shipment. Tell us at enquiry stage which documents the project requires.
• Third-party inspection. If your project calls for an independent inspector, say so when you send the item list and the visit will be planned into the production schedule.
• Factory system. The plant works to an ISO 9001 quality management system, which is what keeps the test and inspection routine consistent across repeat orders.

Thread Compatibility & Replacement

• Match the standard, not only the diameter. A Russian standard thread is not interchangeable with NPT. If the diameter looks right but the standard is wrong, the joint will not seal, so confirm which thread standard the pipe is cut to before ordering.

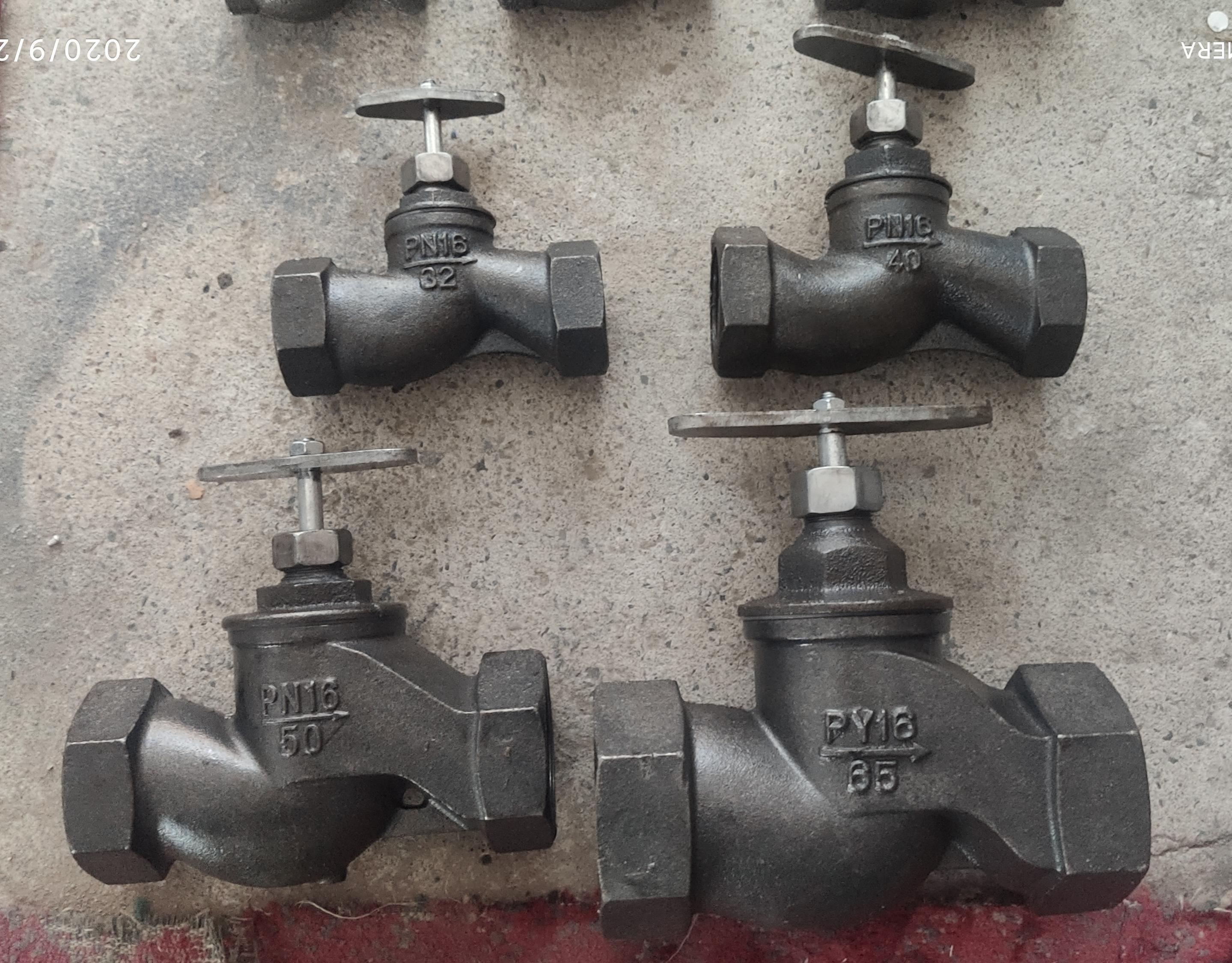

• Read the old valve first. Size, pressure marking and thread are normally cast or stamped on the body of the valve being replaced. Photograph those markings and send them with the enquiry; it is the fastest way to get the right replacement on a Russian standard globe valve.
• Check the pipe end. Note whether the pipe presents a male or female end, and whether a nipple or reducer sits between the pipe and the valve. That decides which end configuration is needed.
• State the pressure class. A replacement ordered against the wrong class will not suit the line, so confirm the class before ordering a GOST globe valve.
• Think about sealing before installation. PTFE tape or an approved thread paste is used on the joint, and the choice depends on the medium and temperature. Tape fragments entering a line are a real risk on small bore work, so wrap it carefully.
• Check the space. Threaded globe valves are compact, but the handwheel still needs room to turn and the body needs room for a wrench. On a crowded header, measure installed length and handle clearance before the valve arrives.

Installation & Commissioning

1. Isolate the section, close the upstream and downstream valves, drain the line and let it come to ambient temperature before work starts.
2. Check the new valve against the pipe: thread standard, size, and that the handwheel turns freely through its full travel before it goes anywhere near the line.
3. Clean both threads and remove old tape or hardened paste with a wire brush; a dirty thread is the usual cause of a weeping joint.
4. Apply PTFE tape clockwise as viewed from the pipe end, or an approved thread paste, leaving the first thread bare so no tape enters the bore.
5. Screw the valve on by hand until it seats, then tighten with a wrench on the body hexagon. Never tighten on the handwheel or the bonnet nut, which will distort the operating parts.
6. Open and close the valve once after fitting to confirm the disc travels freely and nothing is binding in the new position.
7. Pressurise slowly, check both joints, re-tighten only if a weep appears, and record the installation date against the valve tag for maintenance planning.

Use Scenarios

Petrochemical and refinery transfer lines. Refineries run transfer lines at fluctuating pressure and temperature, and the valve in the regulating position has to hold a set flow without drifting. The GOST thread matters here as much as the body, because many Russian and Central Asian plants still run legacy threaded pipework and a Russian standard globe valve that matches it goes in without adapters. The forged steel body copes with corrosive fluids and pressure swings in the same duty. Municipal water supply and wastewater. Treatment works and distribution networks use threaded globe valves for flow isolation and regulation on smaller branches. The valve comes out quickly when a section needs servicing, which keeps interruption short, and its sealing reliability matters most on potable and wastewater lines where a weep becomes a public complaint. Maintenance and retrofit work. Replacing a worn valve mid-shutdown is the most common use of this model. Because the connection is threaded, the old valve is unscrewed and the new one fitted without cutting the pipe, re-threading or re-welding, so a planned two-day job stays inside its window. Distribution stock for Russian and Central Asian markets. Importers building a catalogue for these markets keep a GOST globe valve line in stock. Chemical and process plants. Where the medium is corrosive and the flow needs trimming rather than switching, the globe pattern gives the operator a usable regulating range. Trim the flow at the handwheel rather than cycling a shut-off valve, and the seat lasts considerably longer.

Specifications

Ordering & Delivery

To quote accurately we need the line size, the thread standard on your pipe, the pressure class the line runs at, the medium and temperature, the quantity and the delivery destination. If you are replacing an existing valve, a photograph of the markings on the old body saves a round of questions.

Mixed orders are normal for this range. Buyers who already use us as a ball valve supplier often add a din ball valve or ansi ball valve line to the same shipment, and api 608 ball valve enquiries are handled on the same item list. Distributors comparing ball valve manufacturers for a consolidated container can send the whole list and have it priced as one order rather than negotiating each series separately.

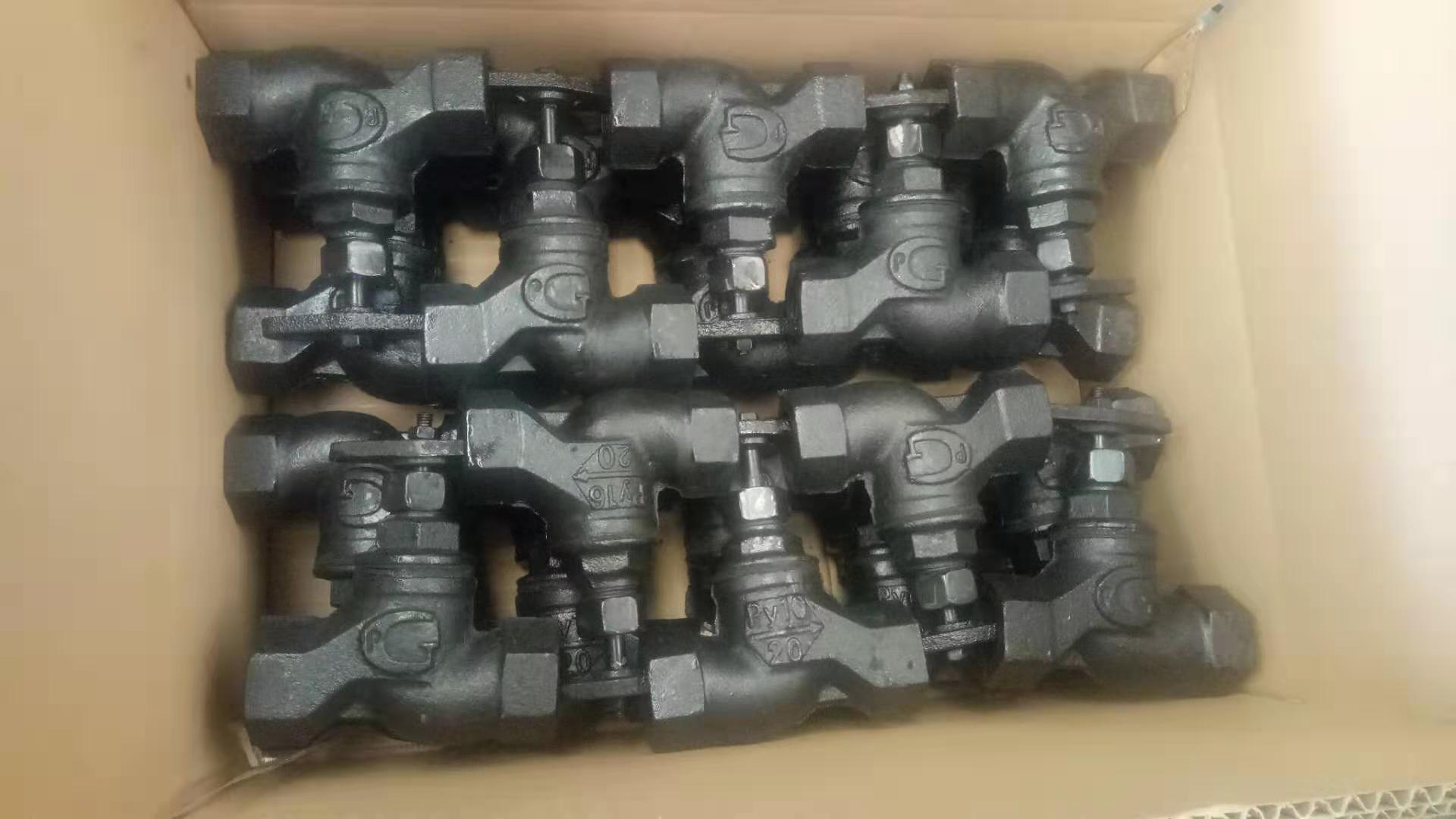

Packing, lead time, shipping terms and payment arrangements are confirmed against the fixed item list before production starts; tell your sales contact if the valves are going by sea freight so thread protection and crating can be agreed at the same time. Where a size or thread configuration falls outside our standard patterns, we will say so before quoting rather than after the order is placed.

Scale & Supply Capability

LONGYAO WOYU VALVE CO., LTD. is a valve manufacturing factory exporting to buyers in more than 40 countries, including Russia and Central Asia, Pakistan and South Asia, Korea and Vietnam, and the Middle East. We build to German DIN, Russian GOST, American ANSI/AWWA, Japanese JIS and British BS standards, so an importer can assemble a full catalogue across series from one supplier. Orders can ship under your own brand: we handle nameplates, packing marks and carton labelling to your artwork, with the authorisation documents agreed before production. Send your item list and we will confirm availability and delivery date.
